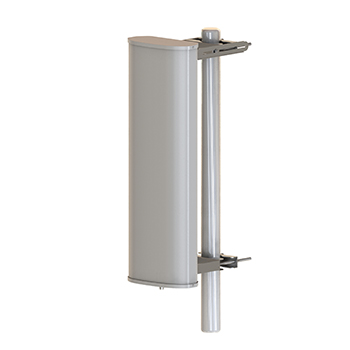

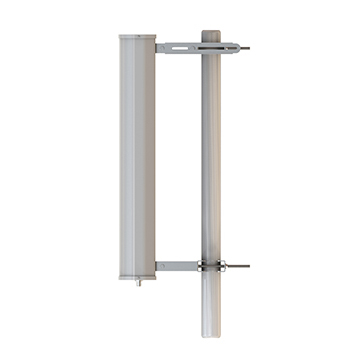

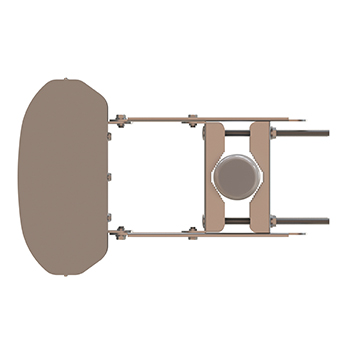

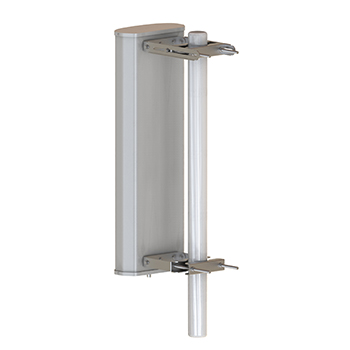

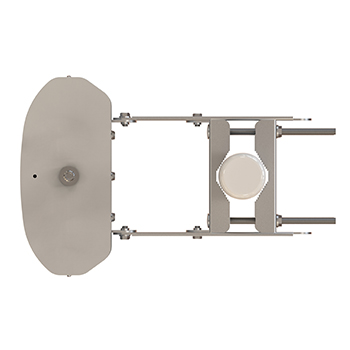

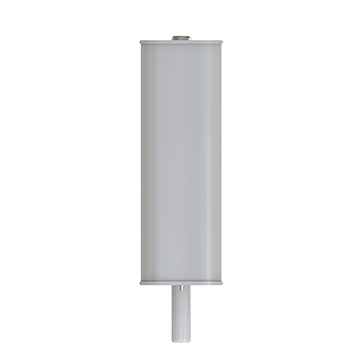

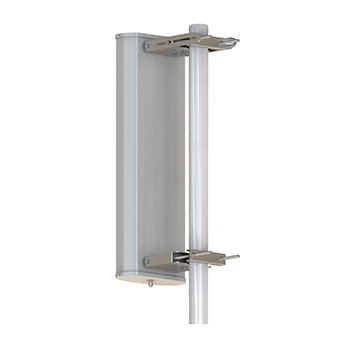

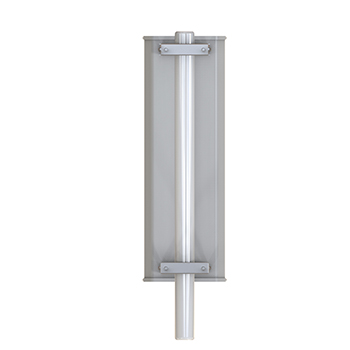

The NH Microwave Base Station Panel Antenna is a professional quality complement to any base station to achieve directional coverage in your outdoor space. It can be used stand alone or in circular group to maximize coverage, with mounting systems that adjust to pinpoint direction.
This highly versatile antenna is suitable for a broad range of outdoor applications where focused RF coverage of an area is desired.
Features:
•Heavy-duty structure, easy to mount
•UV-resistant radome for all-weather operation
•Angles are adjustable from 0~15°
•RoHs Compliant
|
Mechanical Data:
Connector :
Dimensions:
length*width*height
Weight:
Radome Material:
Mounting Method:
Mast Size:
Rated Wind Velocity:
Operating temperature:
|
N Female
1180*288*132mm
46.6*11.3*5.2in
11.6kg/25.6lb
UV Resistance PVC
Mast
Ø50-Ø90mm
210km/h
-40~+65℃
|
|
 |
WHAT WE DO:
We bring 15 years of R&D expertise to your antenna projects. At the helm of our 12-member R&D team is a designer with four decades of antenna development experience. Under his guidance, we have built 380 models, suitable for GSM / CDMA / 3G / 4G / LTE/ DAS / WLAN / Wi-Fi / WiMAX / VHFTV / UHF TV / RFID applications. Each month, we launch 5new products to stay on top of market trends.We use advanced technical equipment to produce our antennas, including far field testing system and 55m³ microwave anechoic chambers, as well as vector network analyzers, spectrum analyzers and signal generators which all are from HP and Agilent. In order to shorten the R&D time, our engineers use a lot of software, including CST, HFSS, Auto CAD, Pro/ENGINEER, SolidWorks and AWR Design Environment.
