QB2458-10D-4NCode: 1100476

    • Frequency: 2400-2500/5150-5850 MHz
    • Gain: 10 dBi/12 dBi
    • VSWR: <1.8:1/<2.0:1
    • Polarization: Horizontal and Vertical

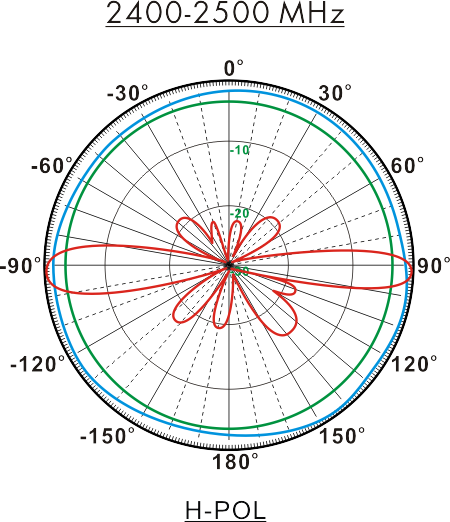

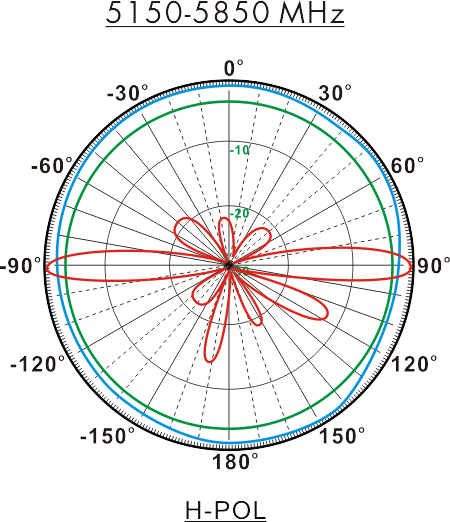

    • Horizontal Beamwidth: 360°

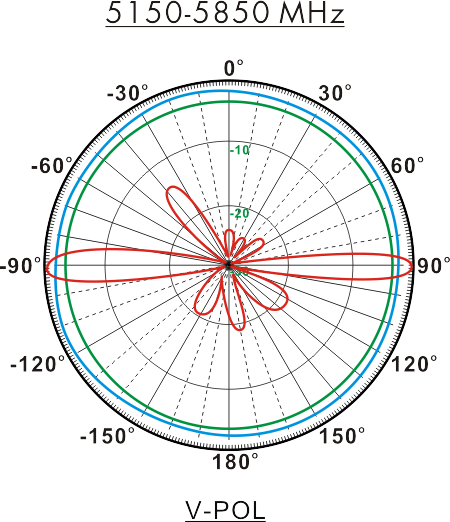

    • Vertical Beamwidth: 12°/7.2°
    • Nominal Impedance: 50 Ohms
    • F/B Ratio:
    • Isolation:
    • Max Input Power: 100 W
    • Lightning Protection: DC Ground

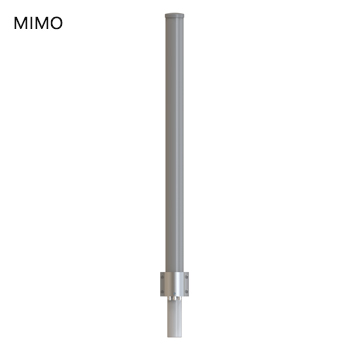

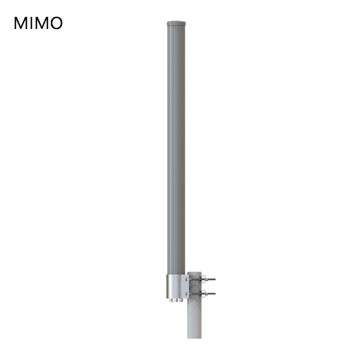

    The NH Microwave Base Station Omnidirectional Antenna combines vertical and horizontal polarization with high gain in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint applications. This antenna makes an ideal alternative to the Ubiquiti AirMax Omni antenna.

    Features:
    •Mulitiple-Input and Mulitiple -Output
    •Durable UV resistant PVC radome
    •Heavy Duty mounting system
    •RoHs Compliant

    Mechanical Data:

    Connector :
    Dimensions:
    (diameter*length)
    Weight:
    Radome Material:

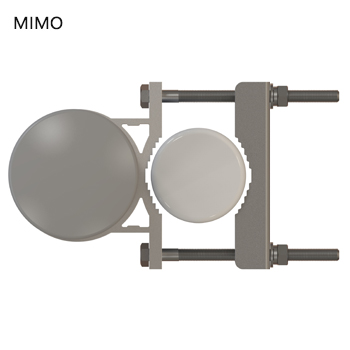

    Mounting Method:
    Mast Size:
    Rated Wind Velocity:
    Operating temperature:
    4*N Female
    Ø84*1260mm
    Ø3.3*49.6in
    3.8kg/8.4lb
    UV Resistance PVC
    Mast
    Ø40-Ø60mm
    210km/h
    -40~+65℃
