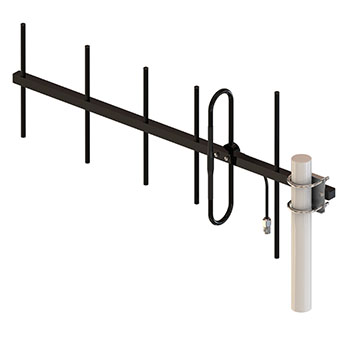

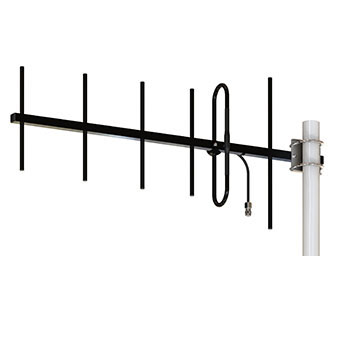

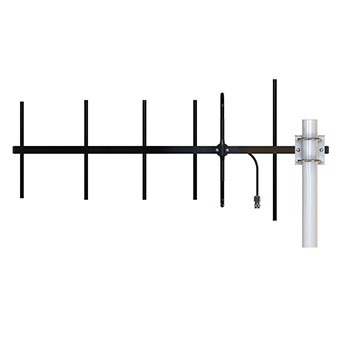

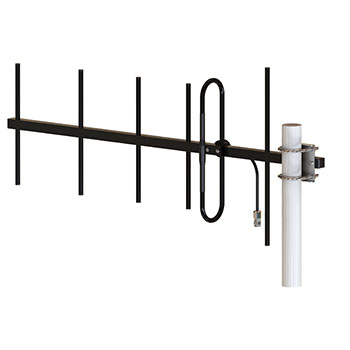

The NH Microwave Yagi Antenna is offered at cost-effective price points for the user who expects exceptional performance and value. It is ideally suited for point to point direction application and long distance transmission.
This Antenna is by default in vertical polarity position and can be adjusted for horizontal polarity position. You can set the yagi up for MIMO application.
Features:
•Strong element construction
•Heavy-duty aluminum or stainless steel boom
•Can be installed for either vertical or horizontal polarization
•RoHs Compliant
|
Mechanical Data:
Connector :
Dimensions:
Weight:
Cable Length:
Antenna Material:
Mounting Method:
Mast Size:
Rated Wind Velocity:
Operating temperature:
|
N Male
810mm/31.89in
2.5kg/5.51lb
360mm/14.2
Stainless Steel
Mast
Ø40-Ø50mm
210km/h
-40~+65℃
|
|
 |
WHAT WE DO:
We bring 15 years of R&D expertise to your antenna projects. At the helm of our 12-member R&D team is a designer with four decades of antenna development experience. Under his guidance, we have built 380 models, suitable for GSM / CDMA / 3G / 4G / LTE/ DAS / WLAN / Wi-Fi / WiMAX / VHFTV / UHF TV / RFID applications. Each month, we launch 5new products to stay on top of market trends.We use advanced technical equipment to produce our antennas, including far field testing system and 55m³ microwave anechoic chambers, as well as vector network analyzers, spectrum analyzers and signal generators which all are from HP and Agilent. In order to shorten the R&D time, our engineers use a lot of software, including CST, HFSS, Auto CAD, Pro/ENGINEER, SolidWorks and AWR Design Environment.
