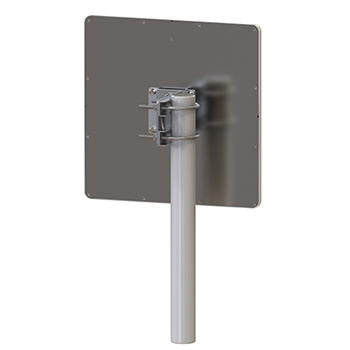

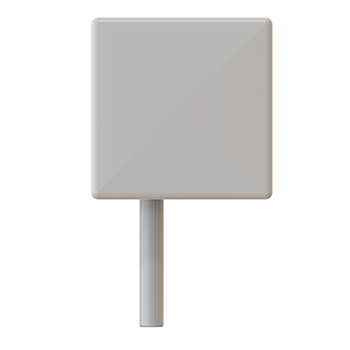

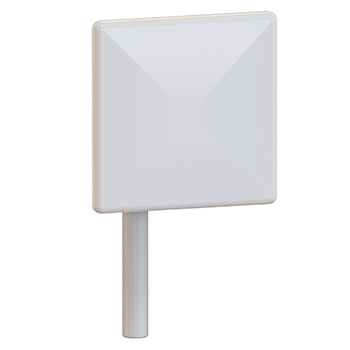

The NH Microwave Direction Panel Antenna is with high performance that is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. It is perfect as a customer premised antenna and for directional coverage in “cell” sites.
This antenna is ideal for signal enhancement in virtually any cellular network application.
Features:
•Compact size and light weight

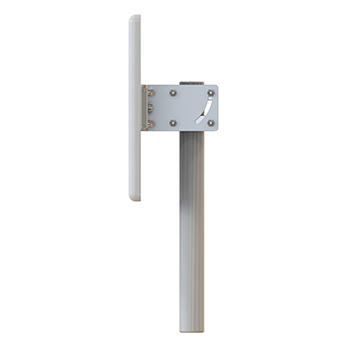

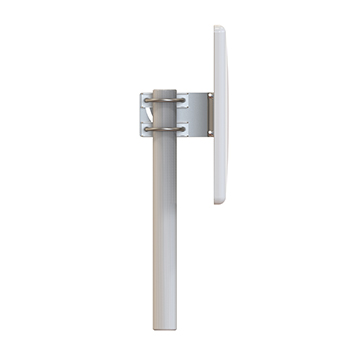

•Optional tilt-and-swivel pole mount kit available
•Easy to mount
•RoHs Compliant
Mechanical Data:
|
Connector :
Dimensions:
length*width*height
Weight:
Radome Material:

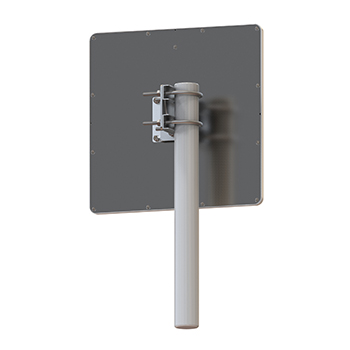

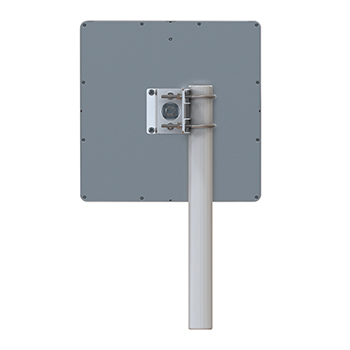

Mounting Method:
Mast Size:
Rated Wind Velocity:
Operating temperature:
|
N Female
300*300*45mm
/11.8*11.8*1.8in
1.4kg/3.0lb
Weatherproof ABS
Mast
Ø30-Ø50mm
210km/h
-40~+65℃ |
|
 |
WHAT WE DO:
We bring 15 years of R&D expertise to your antenna projects. At the helm of our 12-member R&D team is a designer with four decades of antenna development experience. Under his guidance, we have built 380 models, suitable for GSM / CDMA / 3G / 4G / LTE/ DAS / WLAN / Wi-Fi / WiMAX / VHFTV / UHF TV / RFID applications. Each month, we launch 5new products to stay on top of market trends.We use advanced technical equipment to produce our antennas, including far field testing system and 55m³ microwave anechoic chambers, as well as vector network analyzers, spectrum analyzers and signal generators which all are from HP and Agilent. In order to shorten the R&D time, our engineers use a lot of software, including CST, HFSS, Auto CAD, Pro/ENGINEER, SolidWorks and AWR Design Environment.
