QB760-9VCode: 1100147

    • Frequency: 760-780 MHz
    • Gain: 9 dBi
    • VSWR: <1.5:1
    • Polarization: Vertical
    • Horizontal Beamwidth: 360°
    • Vertical Beamwidth: 12°
    • Nominal Impedance: 50 Ohms
    • F/B Ratio:
    • Isolation:
    • Max Input Power: 100 W
    • Lightning Protection: DC Ground

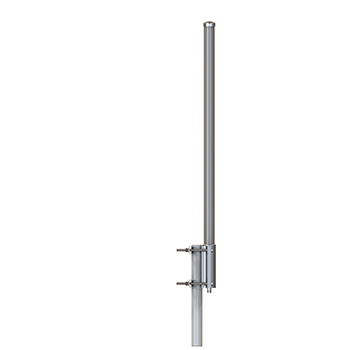

    The NH Microwave Base Station Omnidirectional Antenna is extremely durable and offer superior performance. This professional grade antenna feature a rugged fiberglass radome ensures it withstands all types of weather. 360-degree horizontal coverage gives access to base stations from any direction.

    Features:
    •Extend the signal coverage in a 360-degree radius
    •Tough and weatherproof
    •Heavy Duty mounting system
    •RoHs Compliant

    Mechanical Data:

    Connector :
    Dimensions:
    (diameter*length)
    Weight:
    Radome Material:
    Mounting Method:
    Mast Size:
    Rated Wind Velocity:
    Operating temperature:
    N Female
    Ø38*1825mm
    Ø1.5*71.9in
    3kg/6.6lb
    Fiberglass
    Mast
    Ø40-Ø90mm
    210km/h
    -40~+65℃

    WHAT WE DO:
    We bring 15 years of R&D expertise to your antenna projects. At the helm of our 12-member R&D team is a designer with four decades of antenna development experience. Under his guidance, we have built 380 models, suitable for GSM / CDMA / 3G / 4G / LTE/ DAS / WLAN / Wi-Fi / WiMAX / VHFTV / UHF TV / RFID applications. Each month, we launch 5new products to stay on top of market trends.We use advanced technical equipment to produce our antennas, including far field testing system and 55m³ microwave anechoic chambers, as well as vector network analyzers, spectrum analyzers and signal generators which all are from HP and Agilent. In order to shorten the R&D time, our engineers use a lot of software, including CST, HFSS, Auto CAD, Pro/ENGINEER, SolidWorks and AWR Design Environment.
